location：Homepage / AV Product
AV Product

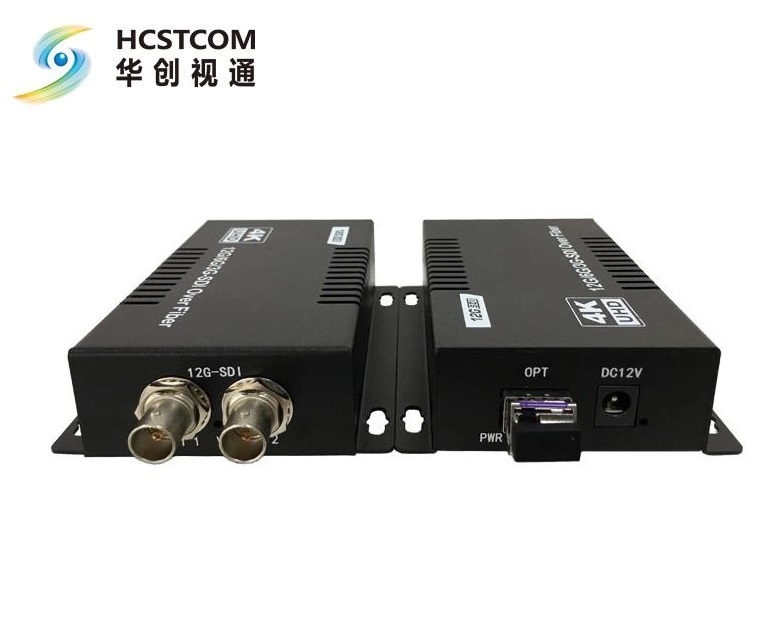

12G-SDI Fiber Extender with Loop out

3G-SDI,6G-SDI,12G-SDI fiber extender, 1-64 channels CWDM uncompressed SDI fiber optic extender,we welcome any AV transmission OEM device

12G-SDI fiber optic transmitter and receiver, 3G-SDI fiber converter, 1-64 channels CWDM uncompressed SDI fiber optic extender, HD-SDI to fiber extender, SDI optical transceiver. SDI extender over fiber . we welcome any AV transmission OEM device

  • Product Introduction

  • Name ： 12G-SDI fiber optic transmitter and receiver,12G-SDI Fiber Extender with Loop out

    1、Overview
    12G-SDI fiber optic extender could transmit3840*2160 60Hz resolution of 12G-SDI signal with 11.88Gb bandwidth over single core fiber cable.it is compatible with 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI, TS stream(auto switching) and SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082

    2、Features
    * 1-ch 12G-SDI over single core fiber cable. Save fiber cable sources.
    * Has 2 SFP port, could have one fiber cable as back up.
    * Support 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI, TS stream(auto switching)
    * SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082
    * Could support rack mount

    3、Application
    Remote OB Van/Truck Video Feeds
    Broadcast Studio Camera Feeds
    Long-haul Signal Transport
    TV station/video conference
    Lecture Hall Projector Connectivity
    Medical/Surgical Room Broadcast
    Building to Building video conference calling
    Small corporate campus video links

    4、Specification
    12G-SDI/ASI In/ Out：1  channel with loop optional
    Signal standard:       SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S, 2081,2082,
                                               DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -11.88Gb/s)
    Signal level:   800mV nominal
    Reflection loss:   >15DB
    Rise/drop time: 200ps nominal
    Reflection loss： > 15dB
    connector： 75Ω BNC
    Overshoot： 10% amplitude
    Jitter:    < 0.3UI
    Optic：Others
    Transmission distance：10KM
    Fiber Type：        single mode (multimode optional)
    Operating temperature： -45°C~+50°C
    Wavelength： 1310nm，1550nm
    Power:    10W
    Reflection loss > 15dB
    Average time trouble-free: >100000 hours
    Connector: LC/PC
    Case: Stand alone(1U rack mount optional)
